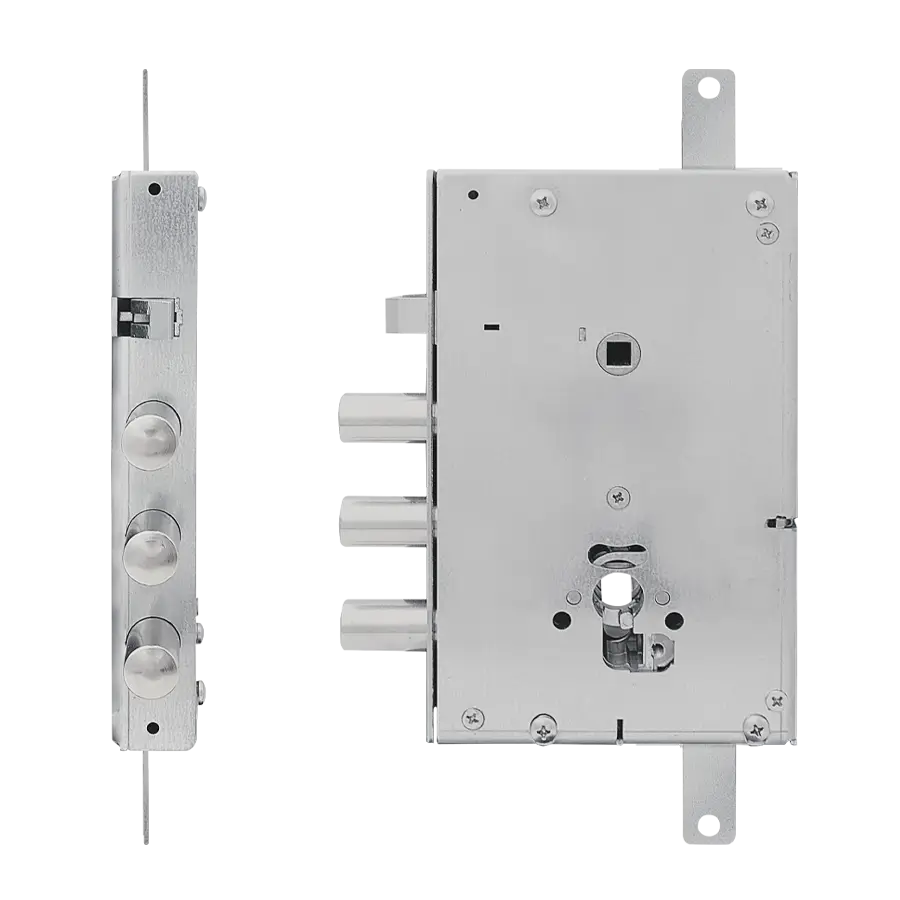

• Cisa compatible’s series
• Cylinder inlet 64 mm
• Handle follower Q 8
• Fixing with columns
• Deadbolts Automatic closing
• Open with handle or key
• Key opening with 1/4 turn
• Key’s Additional locking
• Antipanic function
• High/low lever with single movement (dedicated quikdraws)
• Deadbolt stroke 30 mm, lever output 49 mm
Automatica
| Additional code for Automatic locks | Interaxis Bolts | Protrusion | Cage nuts | Box | Side |
|---|---|---|---|---|---|
| Auto - Motorized - AM | 25 | 0: 00 "+ 3 mm" | NO: 0 | Industrial: 0 | R |
| 27 | A: 05 mm | YES: D | Single: S | L | |
| 28 | B: 10 mm | ||||
| 37 | |||||
| 56 |
| CODE EXAMPLE | DESCRIPTION |
|---|---|
| TMC CA 28 0 D S DX | Three way lock E.C. I.28 – Right Side – Automatic Locking |
