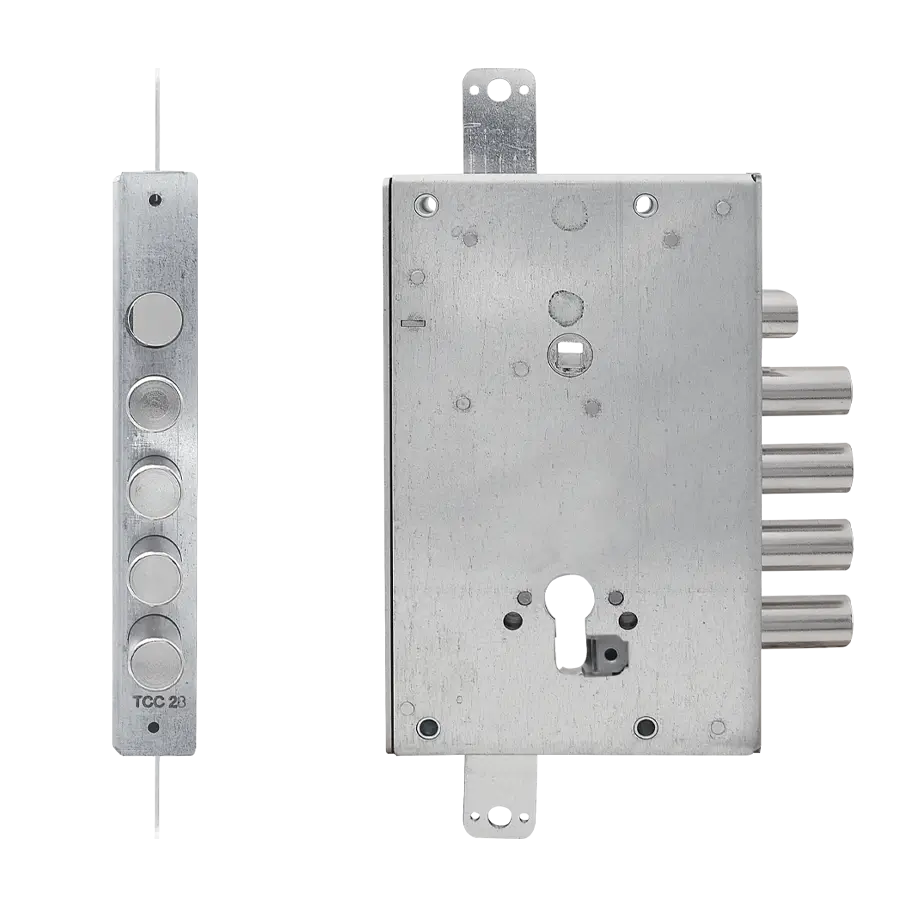

• RAPIDA opening/closing with a single 360° rotation of the key
• Cisa compatible’s series
• Cylinder inlet 64 mm
• Bolts protrusion 3 mm
• Latch activated by square handle and key
• Handle follower Q 8
• When the lock is closed the handle doesn’t activate the lach

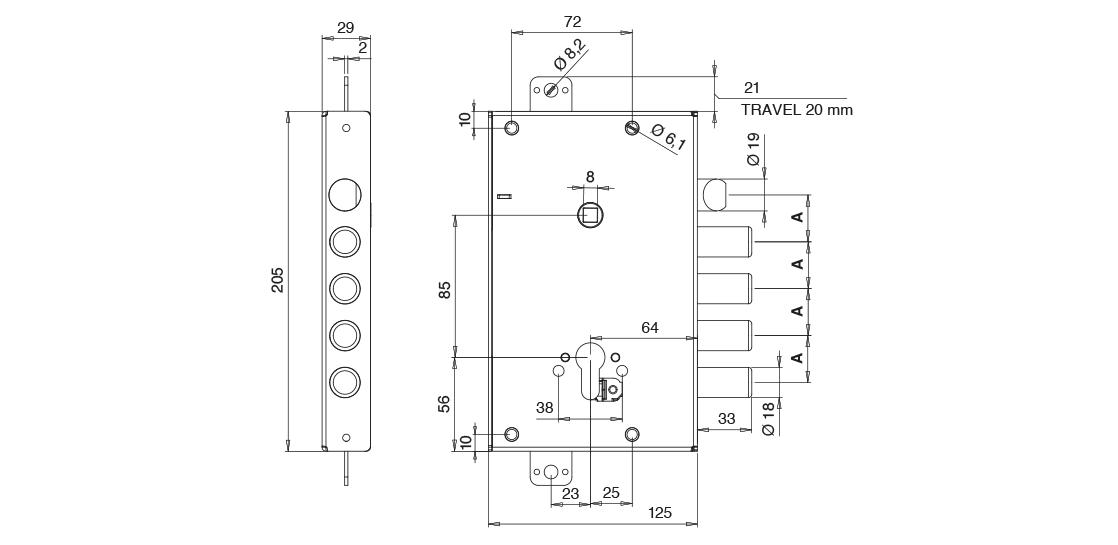

| Cylinder | A: Interaxis Bolts | Protrusion | Box | Customizations |
|---|---|---|---|---|
| 0: European Cylinder | 25 | 0: 00 "+ 3 mm" | Industrial : 0 | NO: 0 |
| 1: Double Cylinder | 27 | A: 05 mm | Single : S | YES: 1 |
| 2: Special Executions | 28 | B: 10 mm | ||
| 37 | C: 15 mm | |||
| 56 |
| CODE EXAMPLE | DESCRIPTION |
|---|---|
| TCCR 0 28 0 S 0 | Three way lock E.C. I.28 1/2 turn |
