• Dierre compatible’s series

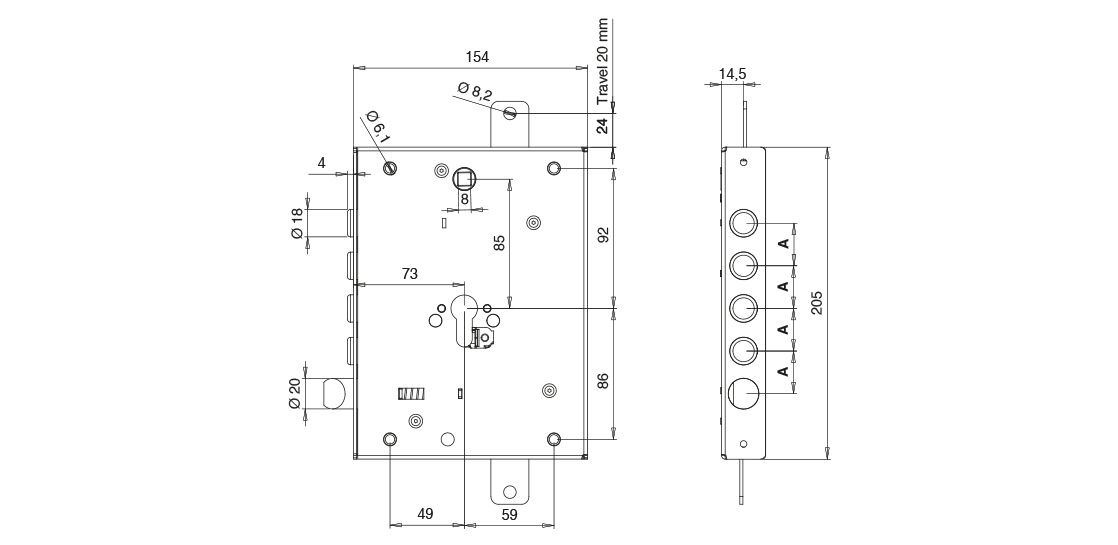

• Cylinder inlet 73 mm
• Bolts protrusion 4 mm
• Latch activated by square handle and key
• Handle follower Q 8
• When the lock is closed the handle doesn’t activate the lach
Cylinder | A: Interaxis Bolts | Protrusion | Cage nuts | Trap | Box | Customizations |
---|---|---|---|---|---|---|
0: European Cylinder | 25 | 0: 00 "+ 4 mm" | NO: 0 | NO: 0 | Industrial : 0 | NO: 0 |
1: Double Cylinder | 27 | A: 05 mm | YES: D | YES: T | Single : S | YES: 1 |
2: Special Executions | 28 | B: 10 mm | ||||
37 | C: 15 mm | |||||
56 |
EXAMPLE CODE | DESCRIPTION |
---|---|
TCG 0 28 0 D 0 S 0 | Three way lock E.C. I.28 1/2 turn – Cage nuts |
